Adams 67 Westyposted on 18 March 2012 | posted in Adams 67 Westy | ( 2 ) Comments
Here's Adams 67 Pearl White west
y in for a full bare metal body restoration!

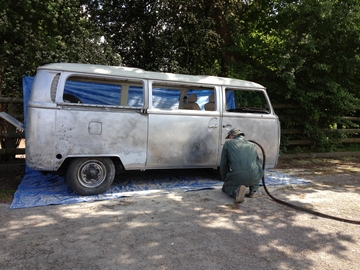

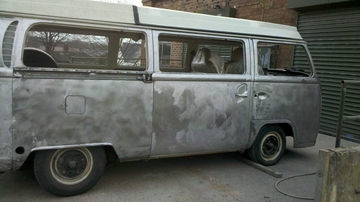

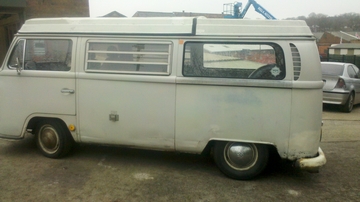

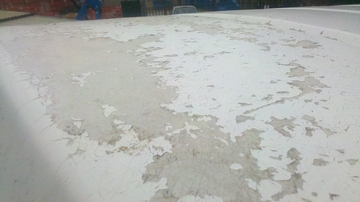

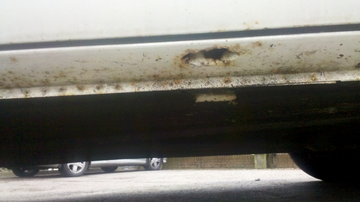

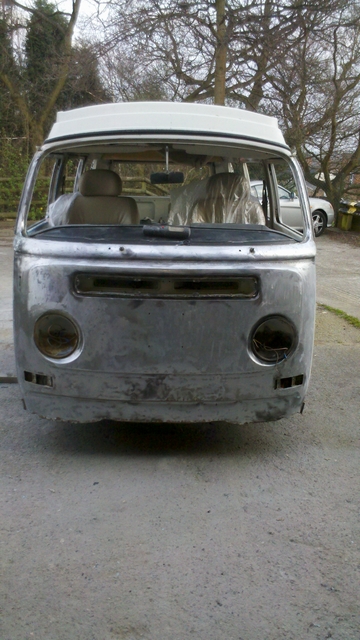

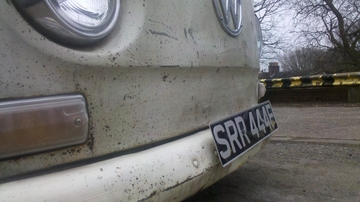

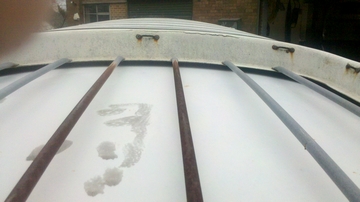

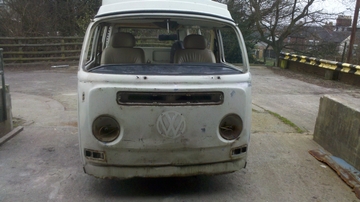

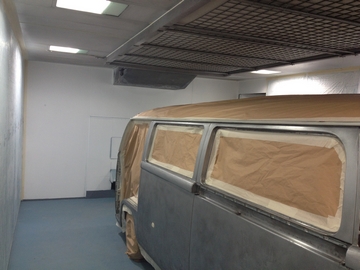

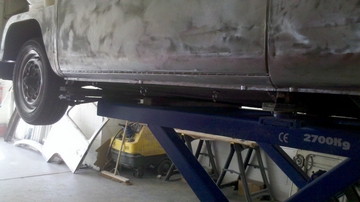

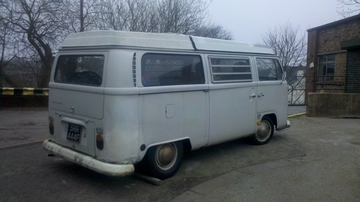

How it arrived!

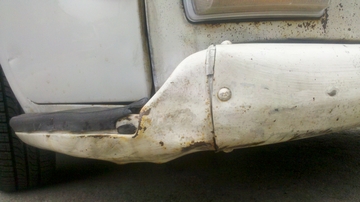

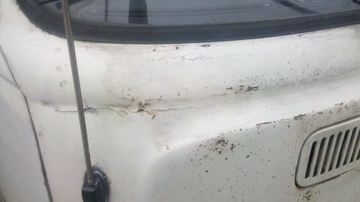

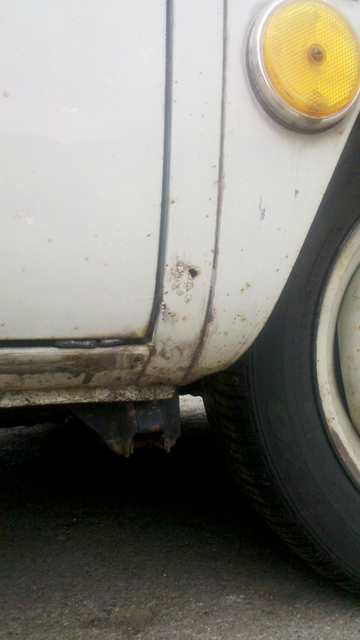

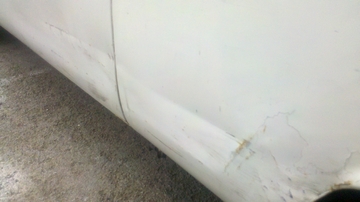

This looks abit sussed ?

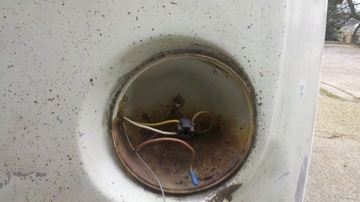

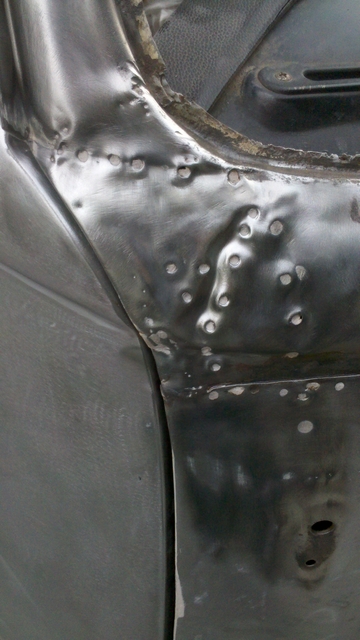

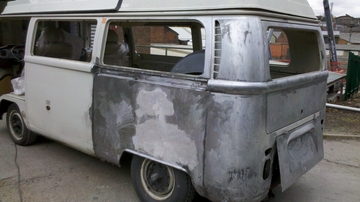

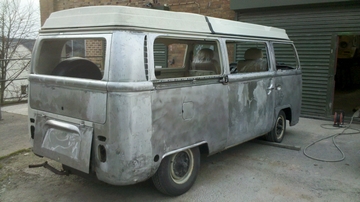

Now the previous repairs are un covered

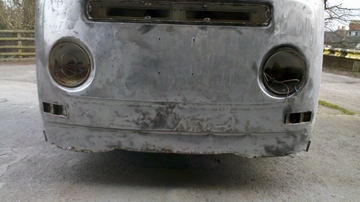

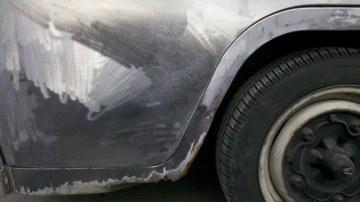

Signs of a replacement front panel

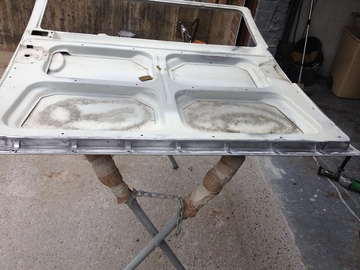

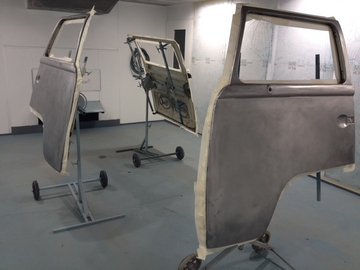

Adam supplied a fantastic replacement door fitted like a dream in as little as Min's

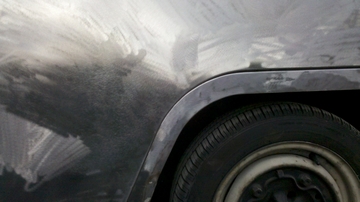

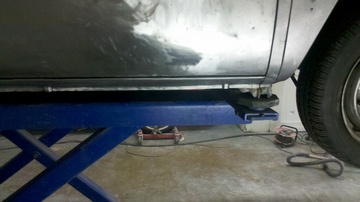

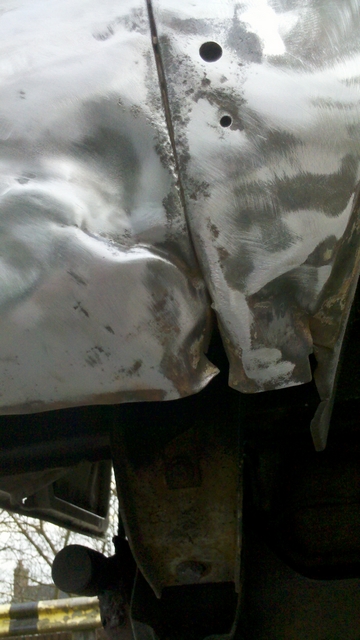

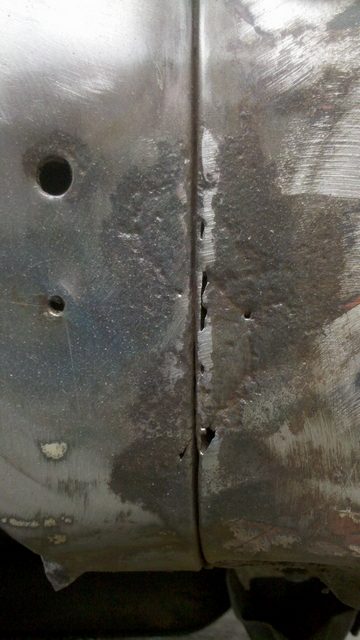

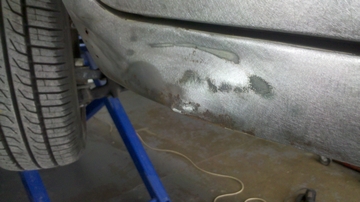

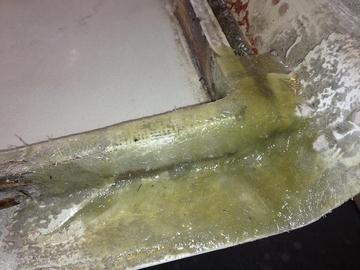

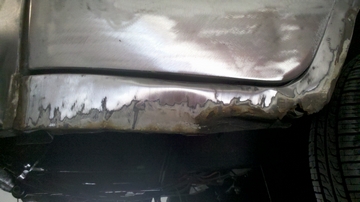

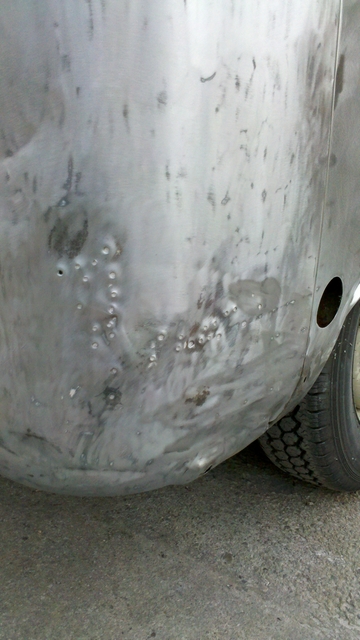

More previous repairs
N/S Arch cut half way

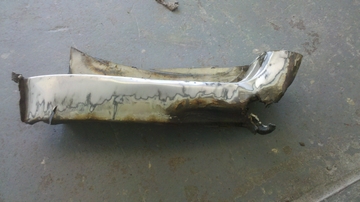

Both pieces prepped and shaped
Welded on !

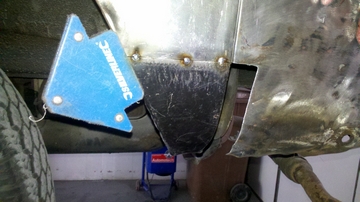

Inner piece welded in

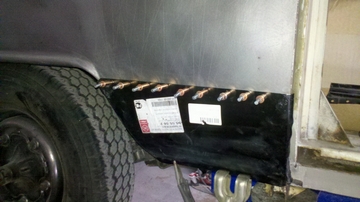

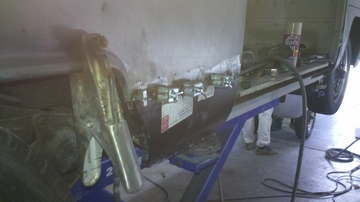

Outer skin welded on

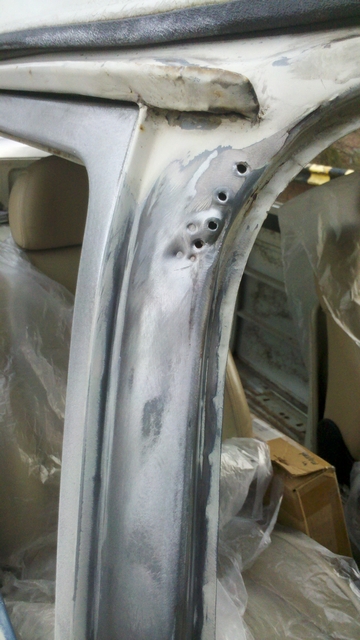

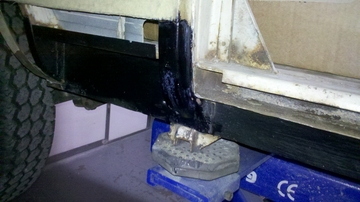

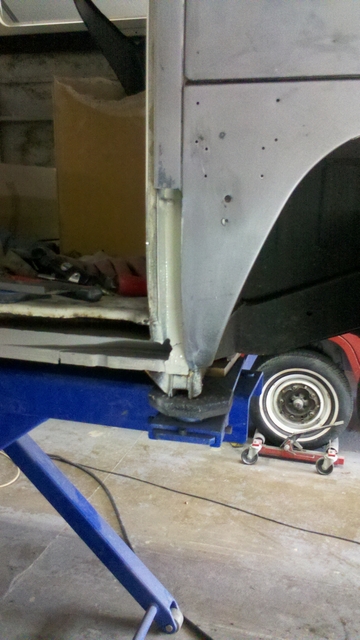

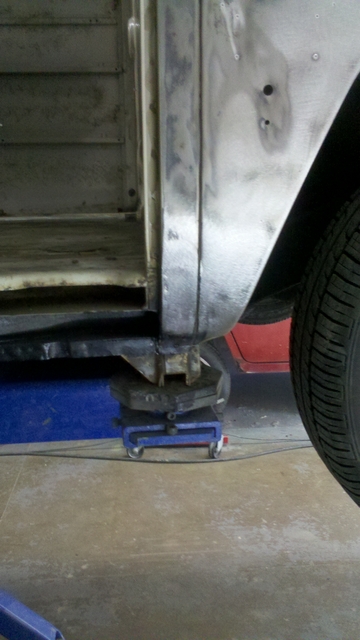

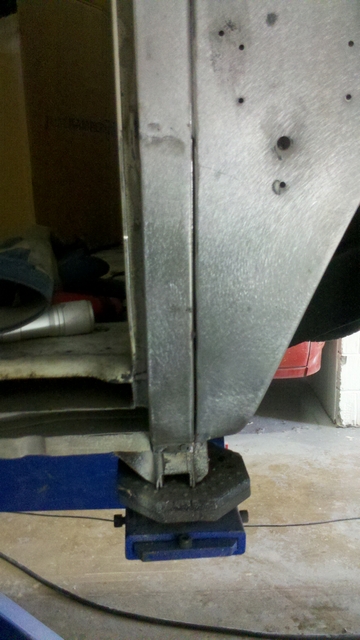

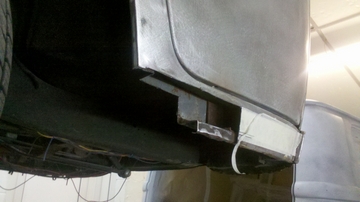

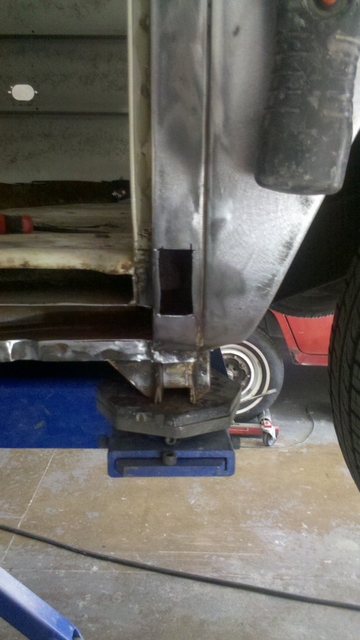

The b post looked a little sussed further up so we decided to cut it off and replace.

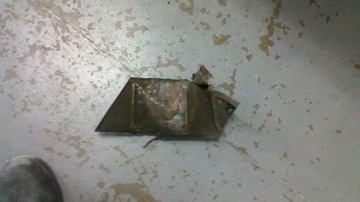

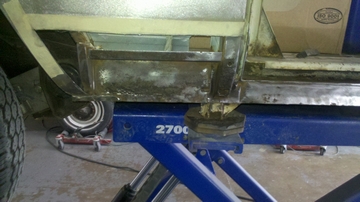

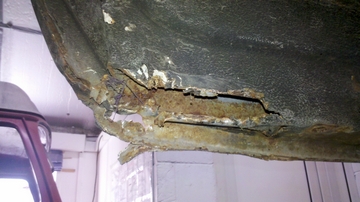

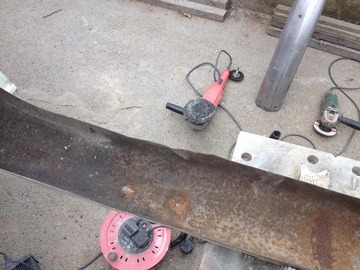

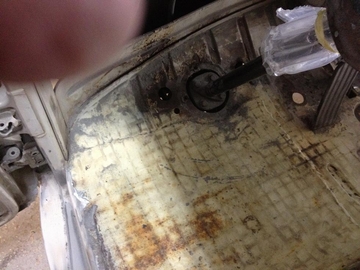

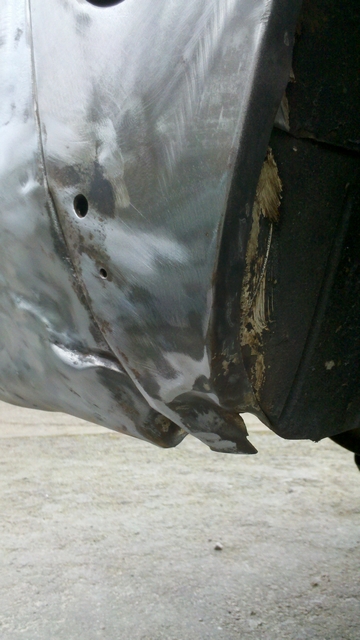

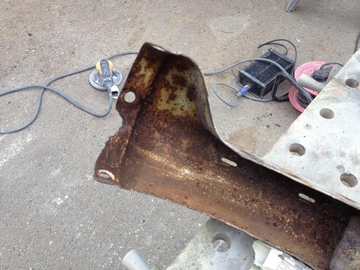

Inner arch cut out as it was too badly damaged and rotten
New piece welded in

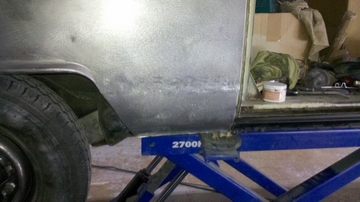

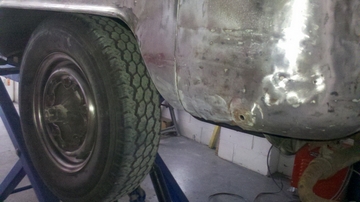

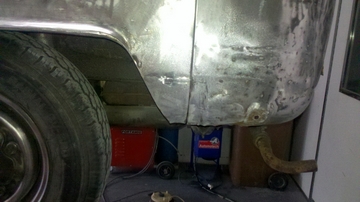

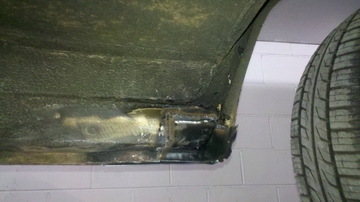

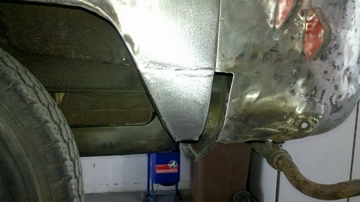

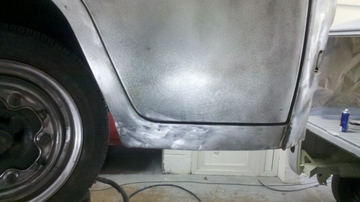

New lower arch welded in and joined to a new return lip
Joined to the new inner arch

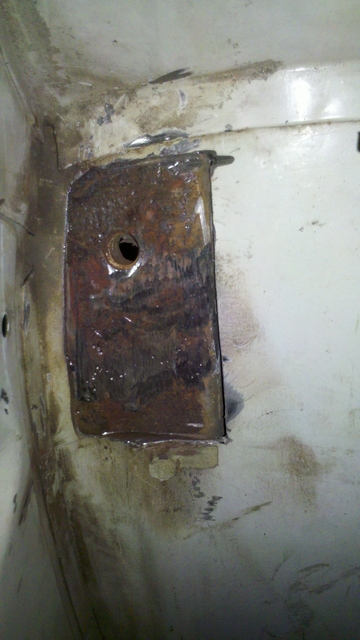

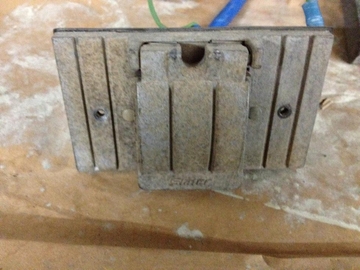

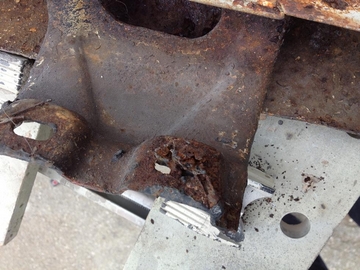

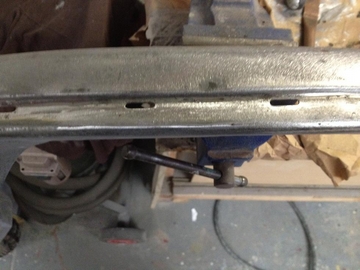

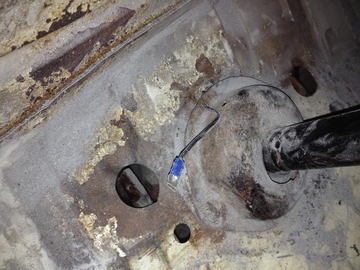

Seat belt mount looked a little soft but turned out to be the top skin

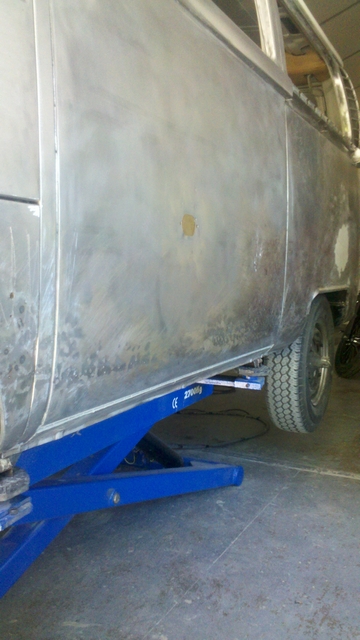

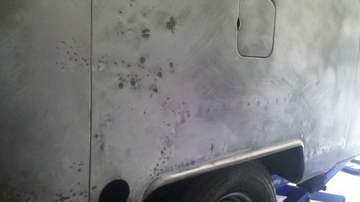

6 - 11hr days spent metal bashing, shrinking, welding chiseling , filing etc to get the shell damage free!

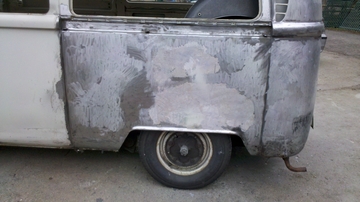

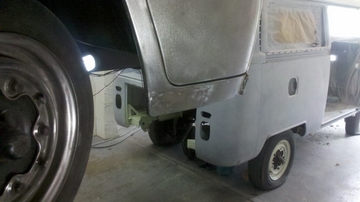

Wheel arch way out

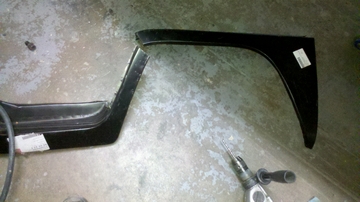

New wheel arch bashed into shape of the original
The one part that was straight!

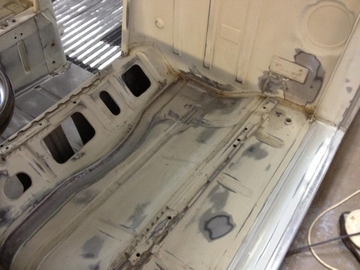

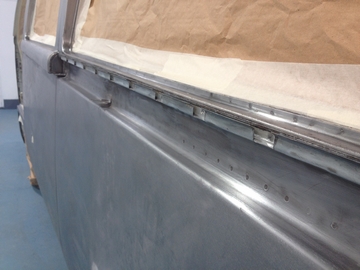

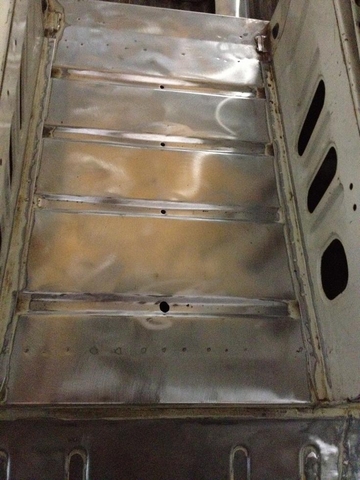

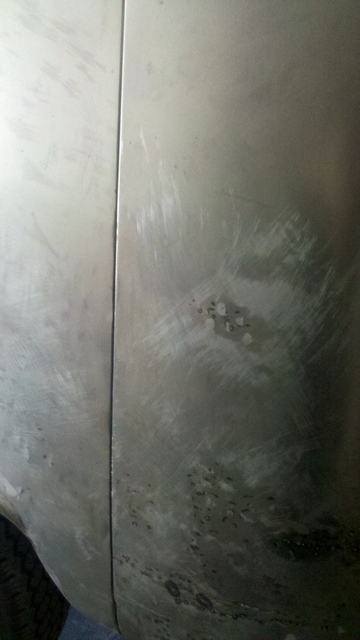

All seams and welded repairs blasted

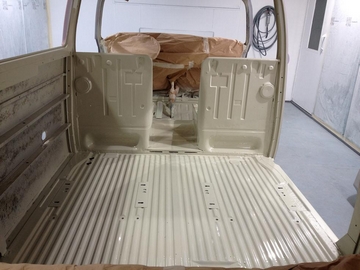

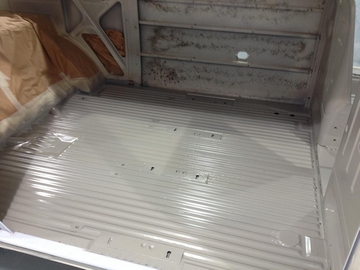

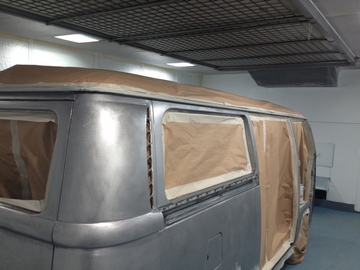

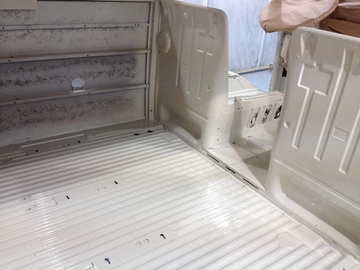

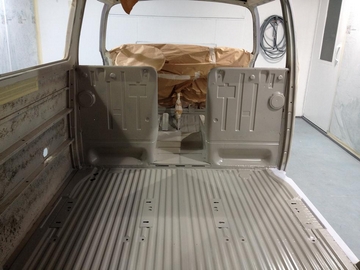

Shell Phosphated, keyed, Baked, Epoxied and baked again

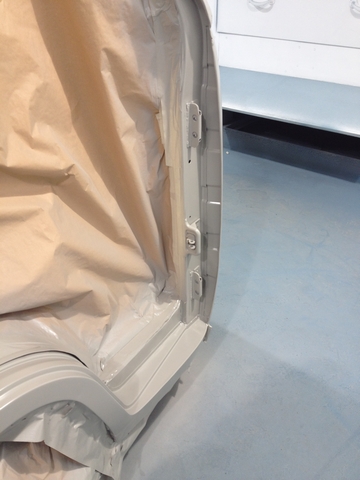

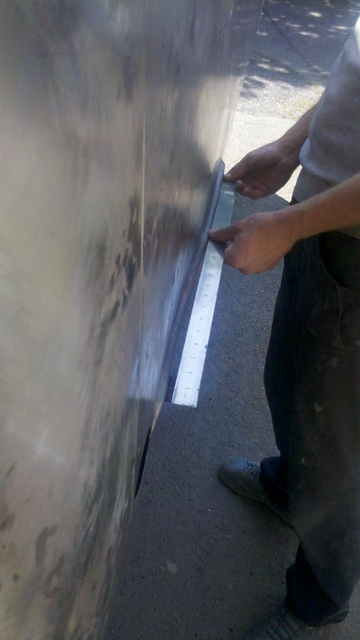

Front pillar pulled forward for better door gaps

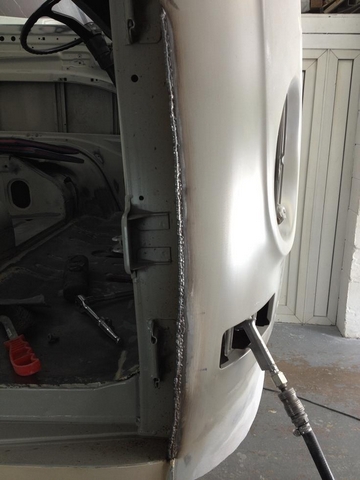

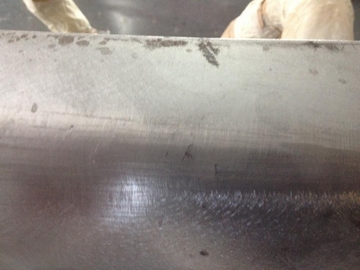

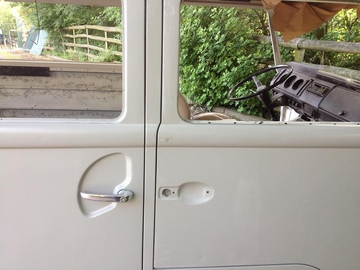

Front welded to achieve better gaps

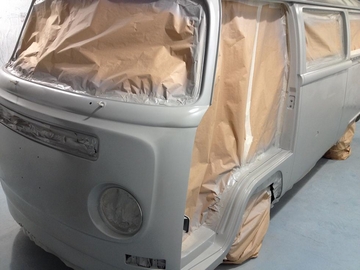

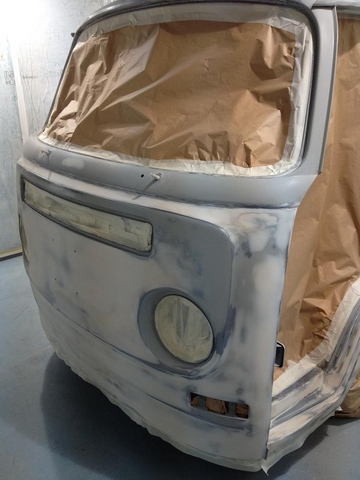

Epoxy premiered again!

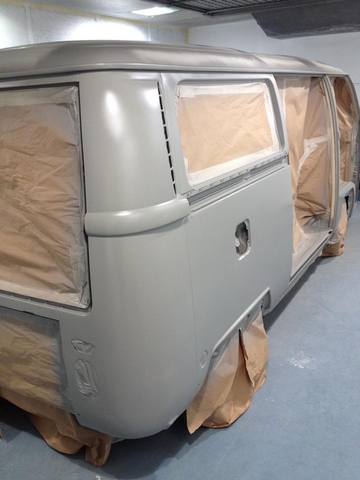

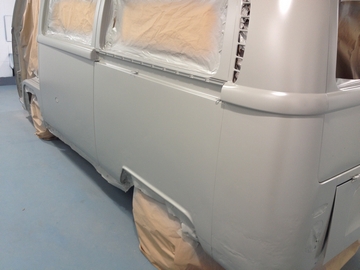

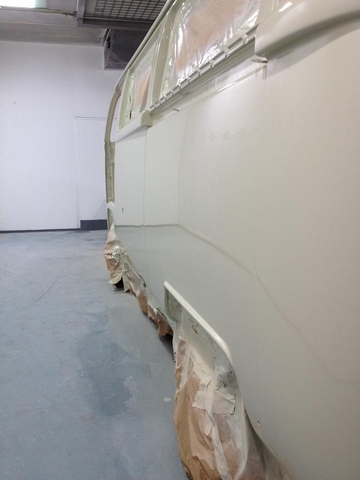

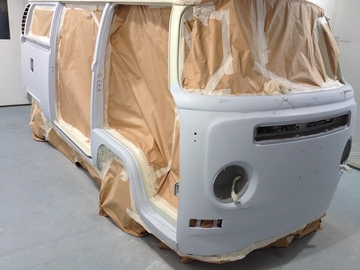

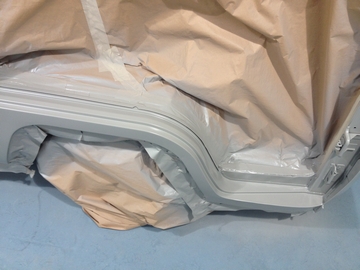

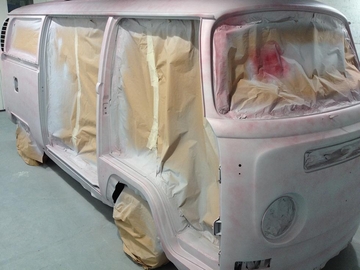

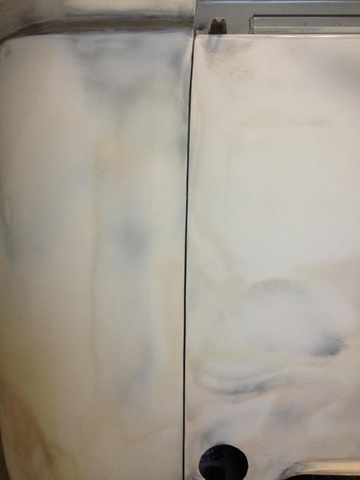

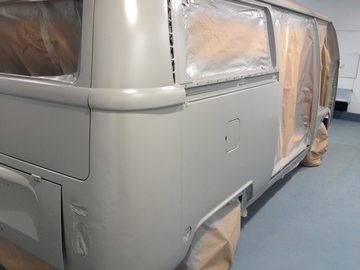

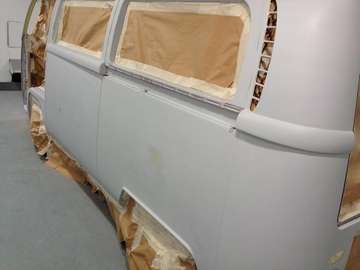

2k surfacer primer

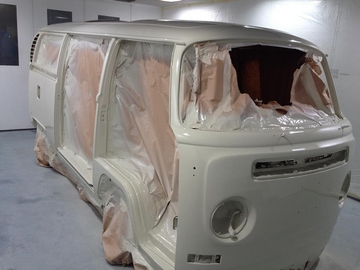

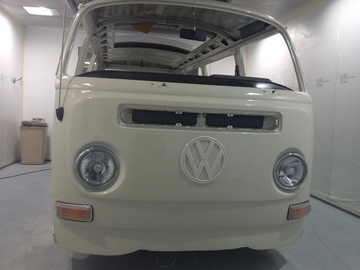

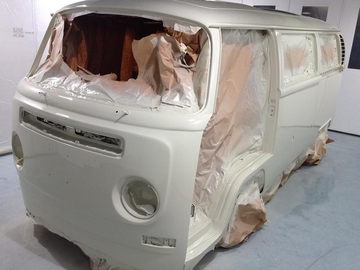

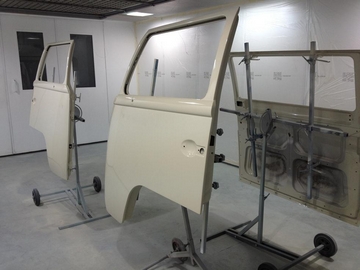

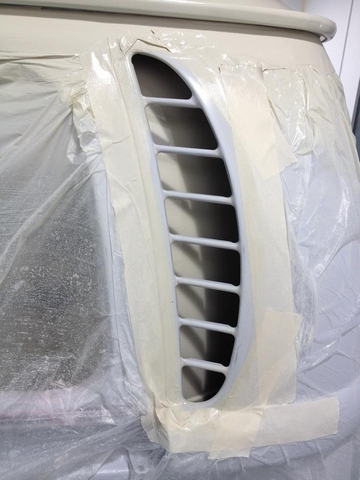

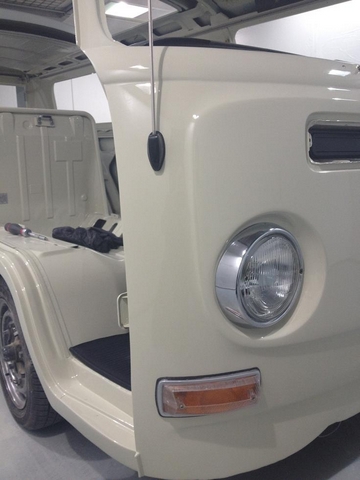

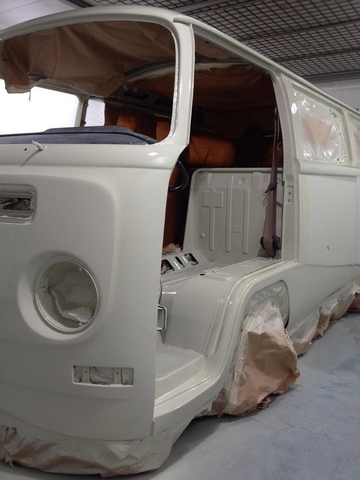

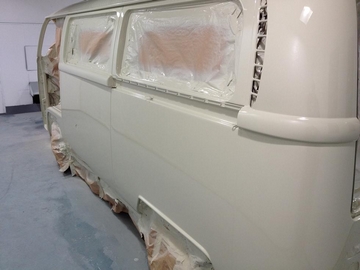

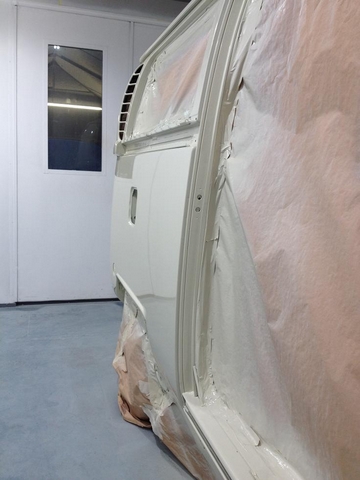

Painted pearl Weiss

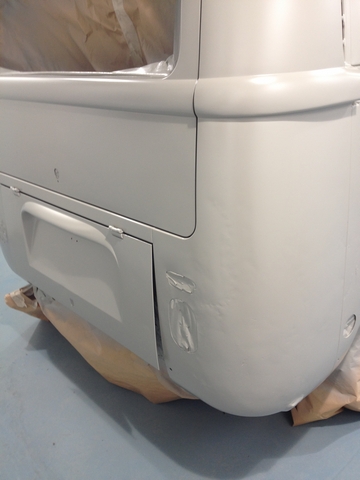

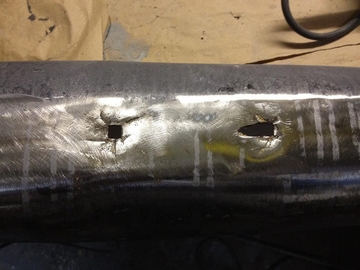

Cracks found and dug out

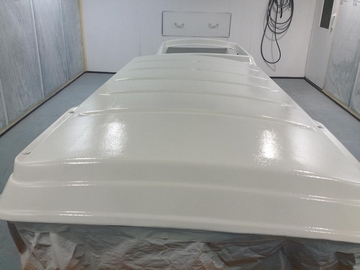

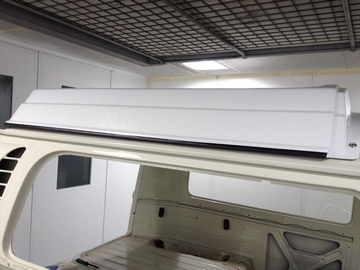

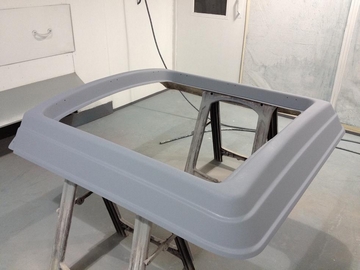

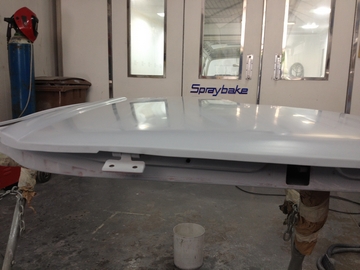

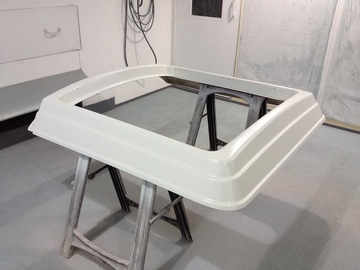

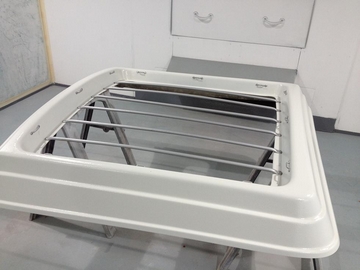

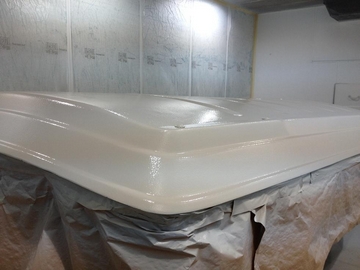

Pop top textured and painted with silver white and matted down to 70% gloss
Interesting stamp inside the tailgate 3rd 1967

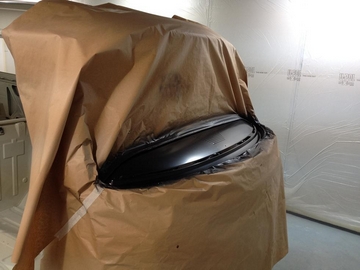

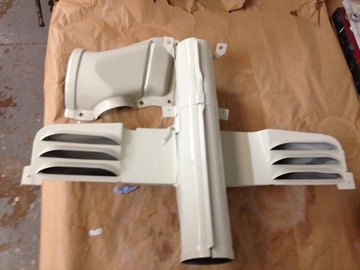

Dash painted satin black

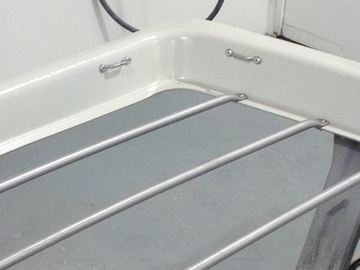

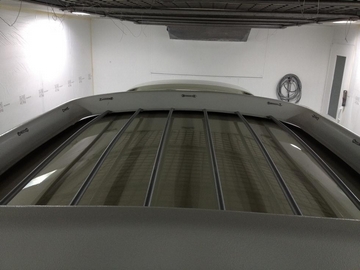

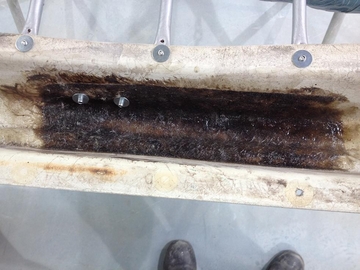

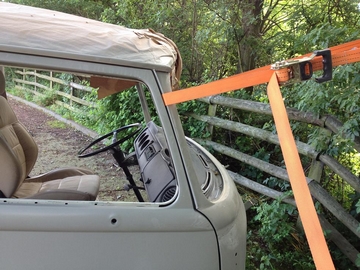

Roof rack on
